Balanced DAM1021

Balanced DAM1021

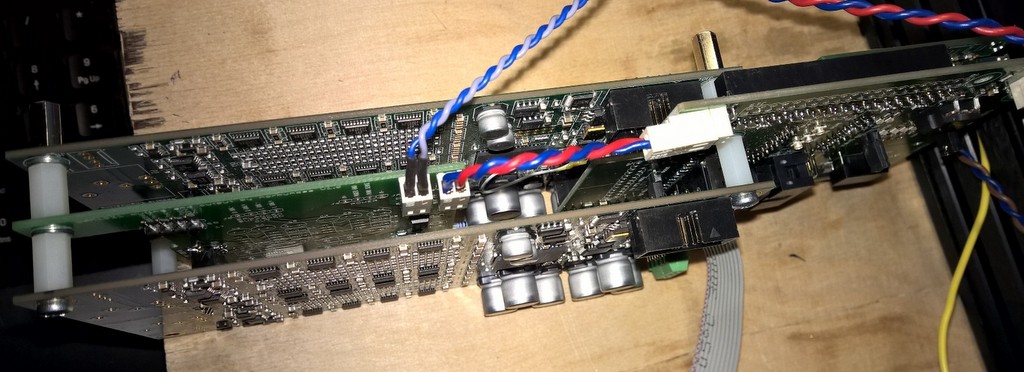

And a balanced dual dac assembly. I will provide better pics and description later, this is just so that people can get a feeling how it all goes together. It also gives an idea how the input board looks without a Raspberry attached.

Note that the J3 and J7 connectors are soldered on the bottom of the second DAM.

The muting board has a second relay, a top connector and an additional output header installed.

The input board has a top 2x13 connector for the second DAM, and a jumper for chaining the serial ports. The R1 resistor should also be removed if coax input is used, but I have not done it in here.
http://www.diyaudio.com/forums/group-bu ... ost4462600
